White Paper: Red Hat CloudForms – Delivering Managed Flexibility For The Cloud

Businesses continually seek to increase flexibility and agility in order to gain competitive advantage and reduce operating cost. The rise of public cloud providers offers one method by which businesses can achieve lower operating costs while gaining competitive advantage. Public clouds provide these advantages by allowing for self-service, on-demand access of compute resources. While the use of public clouds has increased flexibility and agility while reducing costs, it has also presented new challenges in the areas of portability, governance, security, and cost.

These challenges are a result of business users lacking the incentive to adequately govern, secure, and budget for applications deployed in the cloud. As a result, IT organizations have looked to replicate public cloud models in order to convince business users to utilize internal private clouds. An internal cloud avoids the challenges of portability, governance, security, and cost that are associated with public clouds. While the increased cost and inflexibility of private clouds may be justified, the challenges public clouds face make it clear that a solution that allows businesses to seamlessly move applications between cloud providers (both public and private) is critical. A hybrid cloud built with heterogeneous technologies allows business users to benefit from flexibility and agility, while IT maintains
governance and control.

With Red Hat CloudForms, businesses no longer have to choose between providing flexibility and agility to end users through the use of cloud computing or maintaining governance and control of their IT assets. Red Hat CloudForms is an open hybrid cloud management platform that delivers the flexibility and agility businesses want with the control and governance that IT requires. Organizations can build a hybrid cloud that encompasses all of their infrastructure using CloudForms and manage cloud applications without vendor lock-in.

CloudForms implements a layer of abstraction on top of cloud resources–private cloud providers, public cloud providers, and virtualization providers. That abstraction is expressed as the ability to partition and organize cloud resources as seemingly independent clouds to which users can deploy and manage AppForms–CloudForms cloud applications. CloudForms achieves these benefits by allowing users to:

• build clouds for controlled agility
• utilize a cloud-centric deployment and management model
• enable policy-based self-service for end users

This document explains how CloudForms meets the challenges that come from letting users serve themselves, while maintaining control of where workloads are executed and ensuring the life cycle is properly managed. IT organizations are able to help their customers better utilize the cloud or virtualization provider that best meets the customer’s needs while solving the challenges of portability, governance, security, and cost.

Read the White Paper

Tagged , , , , , ,

The Synthesized Cloud: Hybrid Service Models

Today, Red Hat focuses on Infrastructure as a Service (IaaS) and Platform as a Service (PaaS). Often, when speaking with organizations about a cloud opportunity I find myself asking questions to find out the appropriate service model for the customer.

“Do you want to just bring your code?”
“Would you like to access the operating system and perform optimizations?”
“How do you feel about kernel semaphores?”

OK, maybe not that last one, but you get the idea. The answers to these questions often help me determine which one of the models, and thereby solutions, to recommend for the situation. With regards to IaaS, Red Hat will soon be providing it’s Cloud and Virtualization Solution – A combination of virtualization and cloud management software that provides the benefits of a cloud computing model with all the underlying virtualization required. For PaaS Red Hat offers OpenShift Enterprise, a solution designed for on-premise or private cloud deployment which automates much of the provisioning and systems management of the application platform stack.

The Synthesized Cloud

Taking a step back, what is the purpose of having separate and distinct cloud computing models? Why couldn’t the models be combined to allow organizations to use elements of each based on their needs? One of the benefits of cloud computing is the ability for organizations to reach the highest level of standardization possible while increasing reuse. If this is the case, then it should be a goal to provide organizations with the ability to utilize not just a hybrid cloud, but a hybrid service model – one in which elements of IaaS could be combined with elements of a PaaS. By realizing a synthesis of IaaS and PaaS service models organizations could leverage the benefits of cloud computing more widely and realize the benefits even in what are often considered legacy, or traditional applications. Cloud Efficiencies Everywhere is, after all, a goal of Red Hat’s Open Hybrid Cloud. I’ll refer to this combining of IaaS and PaaS into a single service model as the synthesized cloud and I believe it is critical to realizing the full potential of cloud computing.

Why not just use PaaS?

Most organizations I have met with are extremely interested in PaaS. They find the increase in developer productivity PaaS can offer very attractive and the idea of “moving the chalk line” up to have developers bringing code instead of hardware descriptions as very exciting. PaaS is great, no doubt about it, but while PaaS can accelerate delivery for Systems of Engagement, it often does not account for systems of record and other core business systems. There is evidence that supports the idea that organizations are shifting from systems of record to system of engagement, but this is not a shift that will happen overnight and in some cases, systems of record will be maintained alongside or complimented with systems of engagement. Beyond systems of record, there are technologies that exist at the infrastructure layer that can be exposed to the platform layer that might not yet be available in a PaaS (think Hadoop, Condor, etc). In time, some of these technologies might be moved into the PaaS layer, but we likely continue to see innovation happening at both the infrastructure and platform services model layers. In short, IaaS finds its fit in both building new applications that require specific understanding of the underlying infrastructure (networks, storage, etc) and as the foundation for hosting a PaaS and consequently will always be important in organizations. For these reasons it’s important to leave our service model open and flexible while simultaneously having a single way to describe and manage both models.

Use the Correct Mix

The ability to use both platform and infrastructure elements is critical to maintaining flexibility and evolving to an optimized IT infrastructure. Red Hat is well positioned to deliver the synthesis of Infrastructure and Platform service models. This has as much to do with the great engineering work and strategic decisions being made by Red Hat engineers as it does the open source model’s propensity to drive modular design.

Some points to consider:

  1. OpenShift Enterprise, Red Hat’s PaaS, runs on Infrastructure (specifically, Red Hat Enterprise Linux).
  2. Thousands of other applications run on Red Hat Enterprise Linux (RHEL).
  3. Application Blueprints provide sustainable, reusable descriptions of any software running on Red Hat Enterprise Linux.
  4. Red Hat CloudForms can deploy Application Blueprints to a number of underlying resource providers.

Since Application Blueprints can deploy any software running on RHEL and OpenShift Enterprise is software running on RHEL we can deploy a Platform as a Service alongside traditional applications running on RHEL.

synthesizedcloudblueprint01

Figure 1: Combining PaaS and IaaS

Figure 1 depicts the use of an Application Blueprint to deliver a hybrid service model of IaaS and PaaS. During Design Time, a Developer and System Architect work together to design the Application Blueprint. This involves using CloudForms to define and build all the necessary images that will serve as the foundations for each element in the AppForm (a running Application Blueprint). CloudForms allows the System Architect and Developer to build all these images with the push of a button and tracks all the images at each provider. In this case, a single PaaS Element and two IaaS Elements were described in the Application Blueprint.

The design process also allows the System Architect and Developer to associate hardware profiles to each of the images, and specify how the software that runs on the images should be configured upon launch. Finally, user parameters can be accepted in the Application Blueprint, to allow for customization when the Application Blueprint is launched by it’s intended end user. The result of designing an Application Blueprint is a customizable reusable and portable description of a complete application environment.

Once the Application Blueprint is designed and published to a catalog, users or developers are able to launch the Application Blueprint, the result of which is an AppForm at Run Time. The running AppForm can contain both a PaaS and a mix of IaaS elements and CloudForms will orchestrate the configuration of the two service models together upon launch according to the design of the Application Blueprint.

An Example

Imagine an organization has a legacy Human Resources system of record which is a client server model built on Oracle RDBMS. Over time, they’d like to shift this system to a system engagement in order to make it more engaging for their employees. They’d also like to begin providing some data analysis via MapReduce to select individuals in the Human Resources department. In this case, replacing the system of record with a completely new system of engagement is not an option. This may be because of the cost associated with a rewrite or the fact that there are many back end processes that tie into the Oracle RDBMS that cannot be easily changed.

synthesizedcloudblueprint02

Figure 2: Example Scenario

In this example, the Application Blueprint is designed to include an OpenShift PaaS which delivers a scalable, manged application platform (Tomcat in this case) and both a Oracle RDBMS and Hadoop. Once the Application Blueprint is launched users or developers can access this entire environment and begin working. This goes beyond gaining increased developer efficiency at just the platform layer – it drives many of the efficiencies of PaaS across the Infrastructure as well.

Further Benefits of a Hybrid Service Model

There are many other benefits to this synthesis of PaaS and IaaS service models. One other I’d like to explore is it’s effect on system testing. With a hybrid service model, not only do developers have access to all the qualities of both PaaS and IaaS in a single description that is portable, but the Application Lifecycle Environment framework contained within CloudForms along with it’s ability to automatically provision both PaaS and IaaS can be leveraged to lay the foundation for a governed DevOps model. This provides greater efficiency in testing, accelerating delivery of applications, while allowing for control over important aspects of both the Infrastructure and Platform layers.

Figure 3: Governed DevOps

Figure 3: Hybrid Service Model leading to Governed DevOps

Figure 3 illustrates how the Hybrid Service Model allows for a governed DevOps model to be implemented. Before the hybrid service model, developers needed to request the required IaaS elements in order to complete a system test. This process is often manual and time consuming. With a hybrid service model in place, upon commit of new code to the source control system, the continuous integration systems contained within the PaaS layer can request a new test environment be created that includes the required IaaS elements for system testing. This greatly reduces the time required to test, and in turn, accelerates application delivery.

How do I get started?

Organizations can begin to prepare for a Hybrid Service Model by ensuring that all decisions made in their IT organization regarding cloud computing adhere to the properties of a truly open cloud. Namely that the technologies the cloud strategy they pursue:

  • Is Open Source
  • Has a viable, independent community
  • Embraces Open Standards
  • Allows freedom of Intellectual Properpty
  • Allows choice of infrastructure
  • Has open APIs
  • Enables portability

Red Hat’s Open Hybrid Cloud adheres to the following properties. To learn more about how Red Hat is optimizing IT with it’s Open Hybrid Cloud approach be sure to register for the Optimizing IT Virtual Event which takes place on December 5th, 2012 at 11:00AM EST and December 6th, 2012 at 9:00AM EST.

Tagged , , , , , ,

Deploying and Managing OpenShift with CloudForms

The following video demonstrates how OpenShift Enterprise can be deployed and managed via CloudForms. Along with the management of the underlying Red Hat Enterprise Linux that OpenShift Enterprise runs on, managing OpenShift Enterprise via CloudForms provides the following key benefits:

  • Automation of OpenShift Enterprise deployments
  • Consistency and Stability of OpenShift Enterprise builds
  • Governance of languages and frameworks available to OpenShift Enterprise users

More information on CloudForms and OpenShift.

[Consistent] Big Data: An Application Blueprint for Hadoop

I’m lucky enough to still spend a large portion of my time actually speaking with customers. Conversations with customers are invaluable and always leave me with new perspectives. Of course, we talk about cloud computing, but occasionally the conversation will switch to the topic of big data. More often then not, customers big data strategies include Hadoop, a framework for running applications on large clusters built of commodity hardware. The Hadoop framework transparently provides applications both reliability and data motion. Hadoop implements a computational paradigm named Map/Reduce, where the application is divided into many small fragments of work, each of which may be executed or re-executed on any node in the cluster. In addition, it provides a distributed file system (HDFS) that stores data on the compute nodes, providing very high aggregate bandwidth across the cluster. Both MapReduce and the Hadoop Distributed File System are designed so that node failures are automatically handled by the framework [1].

Companies like Google, Yahoo, Hulu, Adobe, Spotify, and Facebook are to some extent, powered by Hadoop [2]. Customers understand the success these companies have experienced due to their effective handling of big data and want to know how they can use Hadoop to replicate that success. Of course, this conversation about big data and Hadoop usually happens after we’ve already discussed Red Hat’s Open Hybrid Cloud vision and philosophy. It’s only natural, then, that they ask how Red Hat’s Open Hybrid Cloud can help them gain the benefits of Hadoop within the constraints of their existing IT infrastructure. Since I’ve had the conversation several times and it usually ends at the whiteboard, I thought it might be useful to sit down and actually show the unique way in which Red Hat’s Open Hybrid Cloud philosophy can be applied to adopting Hadoop. While I’ll be writing about Hadoop, this problem is not unique – it is often faced anytime developers go beyond that which enterprise IT can provide.
Developers: “I want it yesterday”
Good developers want to develop, great developers want to solve problems. For this reason, great developers often adopt technology early for the ways in which it allows them to solve problems that they couldn’t solve with existing technology. Take the scenario of developers adopting Hadoop. They might go out to their public cloud of choice and request a few instances and deploy Hadoop. Of course, deploying Hadoop is not always straightforward and requires some system administration skills. In this case, the developer might use a stack provisioning tool within the public cloud (such as AWS CloudFormations) to launch a pre-configured stack. Once Hadoop is running the developer starts developing.

Developers Deploying Hadoop in Public Cloud

Developers Deploying Hadoop in Public Cloud

System Administrators: “I want it stable”
Once development is complete, the developer sends a message to the system administrator letting them know that the new application is ready to go (we’ll skip change control, Quality Assurance, etc for simplicity). He provides his application code in the form of a package to the system administrator. The system administrator launches the corporate standard build on his virtual infrastructure or IaaS cloud in order to deploy the package the developer provided.

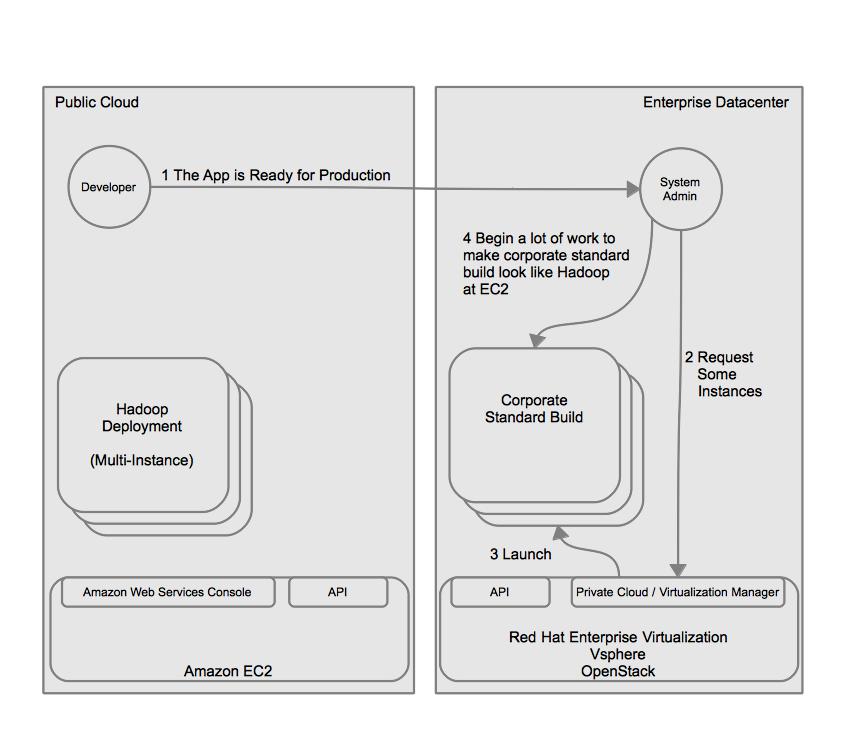

Deploying Public Cloud Development within the Datacenter

Deploying Public Cloud Development within the Datacenter

This scenario presents several issues:

  1. There is no simple way to bring the pre-configured stacks or instances from the public cloud into the enterprise datacenter.
  2. The instances in the public cloud were launched based on the configurations of the developer or whoever developed the stack. This is most likely not compliant with the standard build required by the organization for security or compliance reasons (think PCI, HIPAA, DISA STIG).
  3. Even if the developer documented how to setup Hadoop thoroughly it causes the introduction of another manual step in the process, increasing the likelihood of human error.
  4. The corporate standard build within the enterprise datacenter may vary greatly from the builds in the public cloud. This increases the chances of issues of incompatibility between the application and the infrastructure hosting it.

CloudForms: Delivering managed flexibility
Red Hat’s Open Hybrid Cloud approach can help solve these problems through the use of CloudForms which is based on the open source projects of Aeolus and Katello. CloudForms allows organizations to deploy and manage applications to multiple locations and infrastructure types based on a single application template and policy—maximizing flexibility while simplifying management. The image below provides an overview of how CloudForms changes the way in which Developers and System Administrators work together to achieve speed while maintaining control. Note that CloudForms can also be used to provide quotas, priorities, and other functions to the consumption of resources by developers. We’ll leave those topics for another post. Lets look at how CloudForms can solve this problem.

CloudForms provides managed self-service

CloudForms provides managed self-service

  1. The system administrator defines an application blueprint for Hadoop. This application blueprint is based on the corporate standard build and is portable across multiple cloud resource providers, such as Red Hat Enterprise Virtualziation (RHEV), VMware vSphere, and Amazon EC2. The system administrator places it in the appropriate catalog and allows access to the catalog by the developers.
  2. The developer requests the application blueprint be launched into the Development cloud.
  3. Since the system administrator defined the development cloud and added the a public cloud (Amazon EC2) as a cloud resource provider, CloudForms orchestrates the launch of the Hadoop application blueprint on the public cloud and returns information on how to connect to the instances comprising the running application.
  4. The developer begins development, the same way they did previously.

The key takeaway is that developers experience is the same. They simply request and begin working. In fact, if the pre-configured application stacks in the public cloud provider didn’t yet exist the developers experience will have improved because the CloudForms, using the application blueprint’s services, handled all the complex steps to configure Hadoop.

In the previous scenario, when the developer sends a message to the system administrator that the application is ready for production the system administrator has to go through the cumbersome task of configuring Hadoop from scratch. This would likely include asking the developer questions such as “What version of the operating system are you running? Is SELinux running? What are the firewall rules?”. To which the developer might have likely respond, “SELinux? Firewall? Ummm … I think it’s Linux”. Now, with CloudForms and an Application Blueprint defined, the system administrator can request the same application blueprint be launched to the on-premise enterprise datacenter. With just a few clicks the same known quantity is running on-premise. The system administrator can now be certain that the development and production platforms are the same. Even better, the launched instances in both the public cloud and on-premise register with CloudForms for ongoing lifecycle management, ensuring the instances stay compliant.

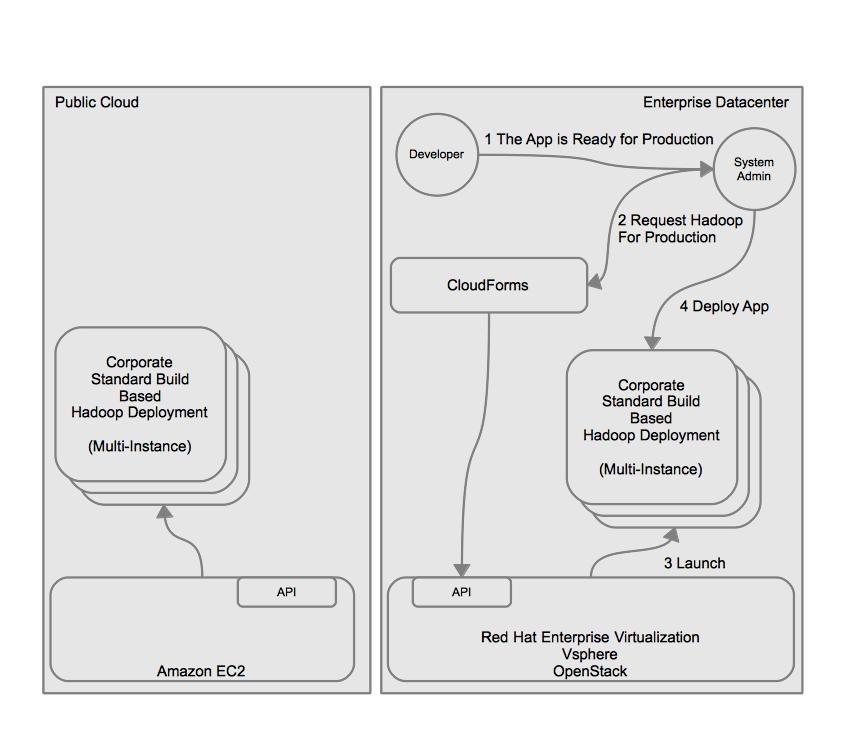

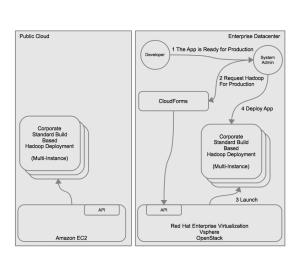

Seamless transition from public cloud to on-premise deployment

Seamless transition from public cloud to on-premise deployment

Decoupling User Experience from Resource Provider
There is another benefit that might not be immediately apparent in this use case. By moving self-service to CloudForms the developers user experience has been decoupled from that of the resource provider. This means that if Enterprise IT wanted to shift development workload to another public cloud in the future, or move it on-premise, they could do so without the developers experience changing.

Application Blueprint for Hadoop
Want to see it in action? I spent a bit of time creating an application blueprint for Hadoop. You can find the blueprint, services, and scripts at GitHub. Here we go. Let’s imagine a developer would like to begin development of a new application using Hadoop. They simply point their web browser to the CloudForms self-service portal and log in.

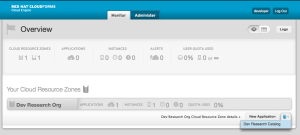

Once in the self-service portal they select the catalog that has been assigned to them by the CloudForms administrator (likely the system administrator), provide a unique name for their application, and launch.

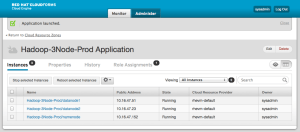

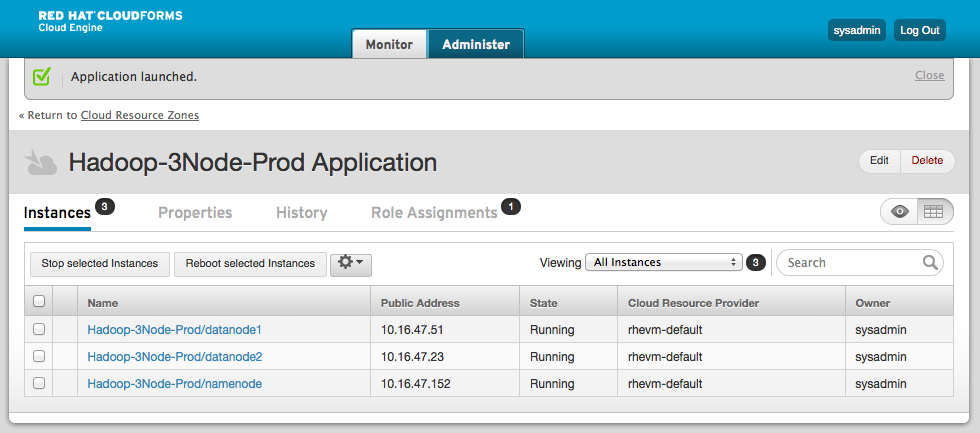

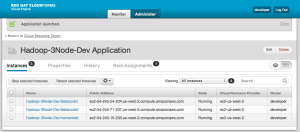

Within a minute or two (with EC2, often less) they receive a view of the 3 instances running that comprise their Hadoop development environment.

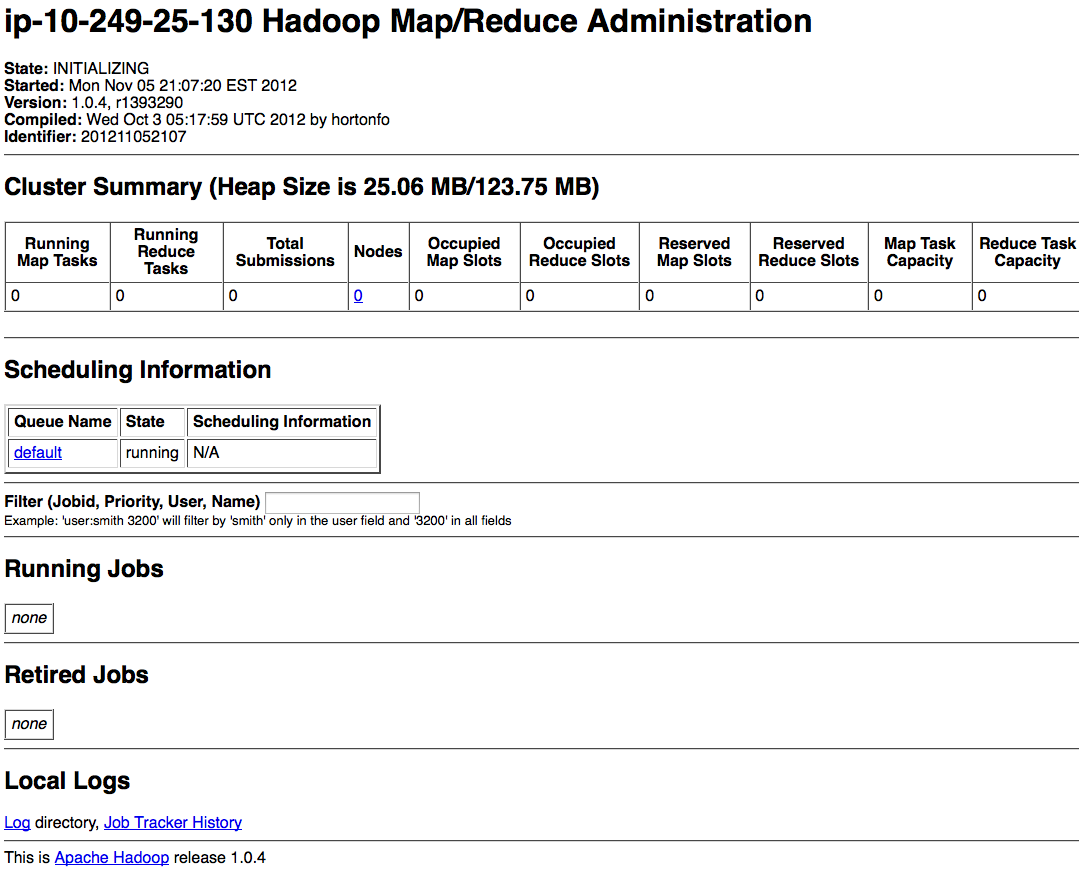

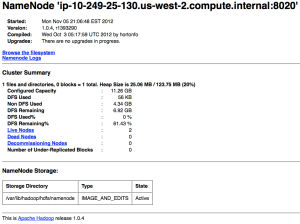

And off the developer can go. They can download their key and log into their instance. CloudForms even started all the services for them, take a look at the jobtracker and DFS health screens below from Hadoop.

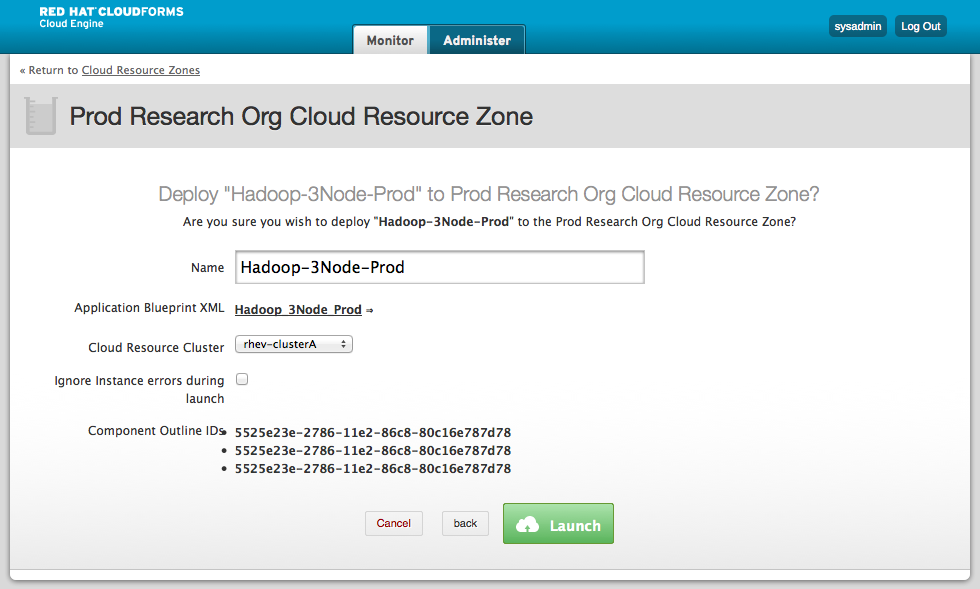

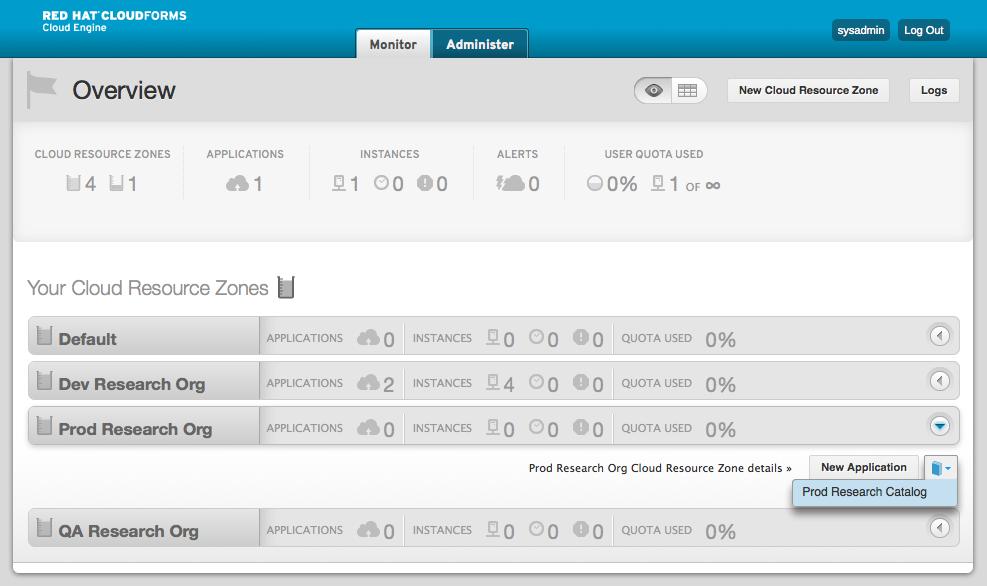

Now, if you recall when the developer logged in to CloudForms only the development cloud was available. This was because the CloudForms administrator limited the clouds and catalogs the developer could use. Once the application is ready to move to production, however, the system administrator can log in and launch the same application blueprint to the production cloud. In this case, the production is running on Red Hat Enterprise Virtualization.


An important concept to grasp is that CloudForms is maintaining the images at the providers and keeping track of which component outline maps to which image. This means the system administrator could update his image for the underlying Hadoop virtual machines (aka instances) without having to throw away the application blueprint and start all over. This makes the life-cycle sustainable, something system administrators will really appreciate.

Also, if the system administrator wanted to change the instance sizes to offer smaller or larger instances or increase the number of instances in the hadoop environment they could do so with a few simple clicks and keystrokes.

So there you have it, consistent Hadoop deployments via application blueprints in CloudForms. Now, if you’d like to take things one step further, check out Matt Farrellee’s project which integrates hadoop with condor.

Non-Linked References
[1] http://wiki.apache.org/hadoop/
[2] http://wiki.apache.org/hadoop/PoweredBy

Puppet Enterprise and Red Hat CloudForms

Please note this is referring to CloudForms Version 1. For more information on CloudForms version 2 integration with puppet you should see this post by John Hardy.

Effective configuration management has always been seen as critical to running an efficient IT department. The school of thought has been that effective configuration management is necessary for automation which, in turn, reduces operational expenditures. I’d argue that it is important to ensure that automation is a critical success factor for reducing opex before pursuing it. For some scenarios in which automation may not always lead to reduced opex I’d refer to some great research by Aaron B. Brown and Joseph L. Hellerstein’s on Reducing the Cost of IT Operations–Is Automation Always the Answer? It’s clear that whether to automate or not is an important question to answer before pursuing it as a strategy to reduce opex. For those scenarios in which a proper analysis has been done and automation appears to be a means to reducing opex you can read on. 🙂

As I mentioned in my earlier post on Open Hybrid PaaS, CloudForms is based on the upstream projects of Aeolus and Katello and allows users to gain greater re-use, increased flexibility, and the wonderment of self-service among other things. One way in which CloudForms achieves greater re-use and increased flexibility is by providing users with the ability to bootstrap instances that have been launched in a cloud resource provider with configuration information. This is particularly useful since each cloud resource provider could potentially have differences that the applications must be aware of.  Network topologies, IP address pools, DNS names, may be dynamically assigned and completely different in a private cloud based on Red Hat Enterprise Virtualization then in Amazon EC2 for example. For more information on how this bootstrap configuration works I’d refer you to the Technical Review Webinar, which provides an architecture overview of CloudForms and gives a demonstration of how the bootstrapping in different clouds is performed.

So you can bootstrap your instances, but how do you manage your configurations on the systems once they are running? Managing drift and configuration deployment is not just a “at boot” problem. In the future, Red Hat CloudForms will likely include the ability to manage configurations of deployed instances ongoing. This will likely happen through the inclusion of The Foreman project and some workflow in Katello. Even still, there is no reason an organization couldn’t get started using puppet today with CloudForms. Here is what integrating a puppet master into a CloudForms enabled environment would work today.

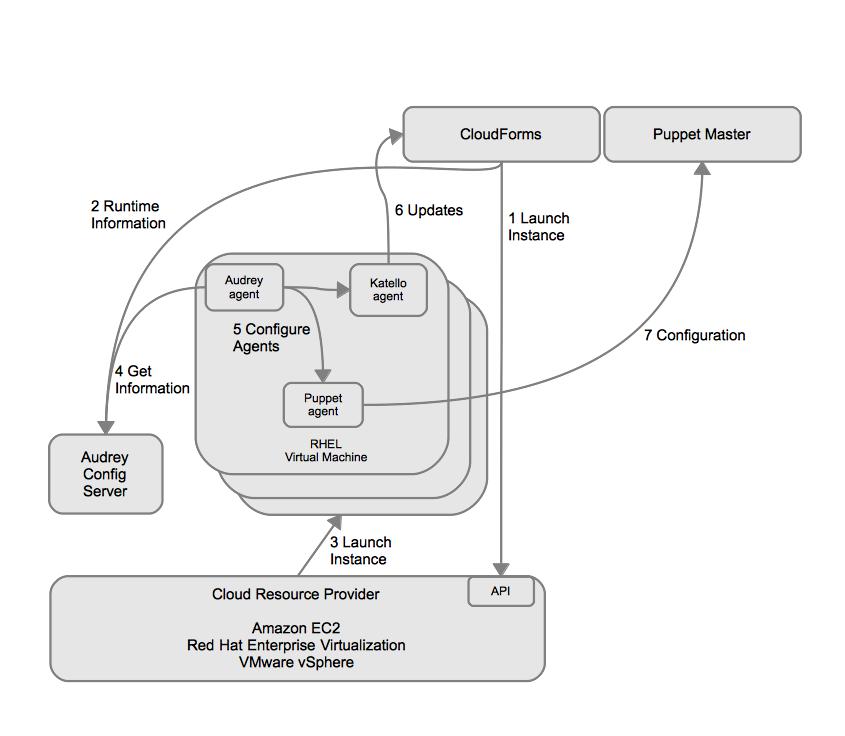

Integrating puppet into a CloudForms environment

  1. CloudForms requests that the cloud resource provider launch the instance using the Deltacloud API.
  2. CloudForms passes runtime configuration information to the Audrey Config Server.
  3. The Cloud Resource Provider launches the instance.
  4. The Audrey Agent included in the image runs at boot and connects to the Audrey Config Server, exchanging information.
  5. With the information required for the environment (for example what the hostname of the puppet master is) the audrey agent configures the Katello Agent and Puppet Agent.
  6. The Katello Agent can now get updates from CloudForms.
  7. The Puppet Agent can now get configuration from Puppet Master.

Here is a quick look at how Puppet Enterprise can be integrated into CloudForms Application Blueprints. We will assume you have already deployed a puppet master. If you need help with that I’d recommend reading the quick start guide on Puppet Enterprise.

First, synchronize the puppet enterprise packages into CloudForms System Engine. This will allow us to build system templates and include the packages required by puppet enterprise.

Synchronizing the Puppet Enterprise Packages

The packages you will need are below. You can find them by extracting the tarball from puppet enterprise and then just creating a yum repository from them.

 pe-puppet-enterprise-release
 pe-puppet
 pe-facter
 pe-ruby
 pe-ruby-libs
 pe-ruby-shadow
 pe-mcollective
 pe-mcollective-common
 pe-ruby-irb
 pe-ruby-rdoc
 pe-rubygem-stomp
 pe-rubygems
 pe-augeas
 pe-augeas-libs
 pe-rubygem-hiera-puppet
 pe-rubygem-hiera
 pe-ruby-augeas
 pe-rubygem-stomp-doc
 pe-ruby-ldap
 pe-ruby-ri

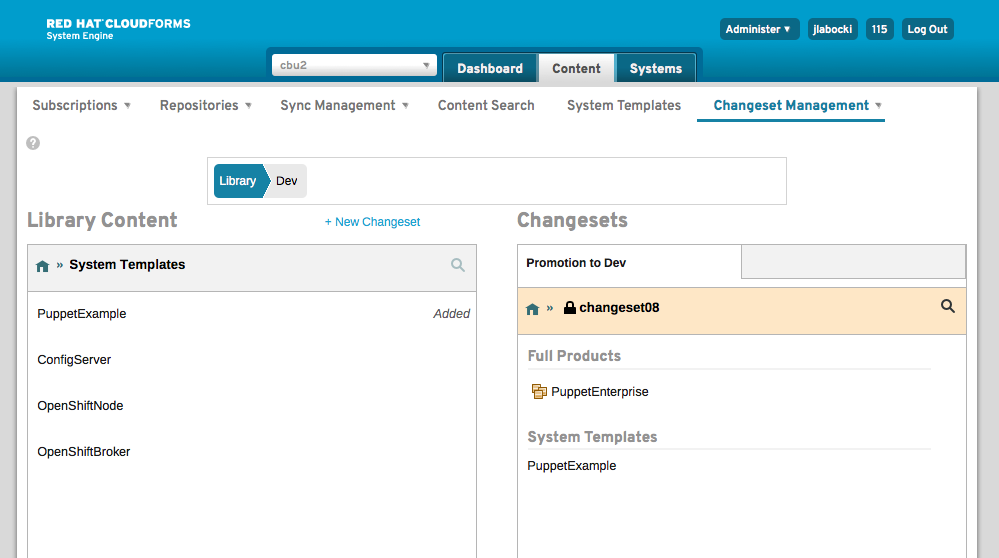

Next, create the system templates and include the packages listed above in them and promote a changeset with the content outside of your library.

Including the puppet enterprise packages in a system template

Promoting the system template and puppet product

Then, download the system template and import it as a new image in CloudForms Cloud Engine and build your images for your providers.

Image Building

Once you have built your images you can include the necessary services in your Application Blueprint to configure the Puppet agent. You can find my services and scripts for the puppet enterprise agent in my GitHub repository.

Application Blueprint

Once you have added the services it’s just a matter of launching the Application Blueprint and specifying the hostname of the puppet master for which you wish to register the instances too. Please note that you could also take this input out of the hands of the user launching the Application Blueprint if desired.

Almost there

Launching to RHEV

The services and script will automatically register the associated instances to the puppet master. As you can see in the screenshot below, the puppet master now sees the instance has issued a certificate request and it can be signed.


After you have signed the request, you can see the node within the puppet enterprise console and can begin managing it.

Instance details within puppet enterprise console

By leveraging the re-usability of Application Blueprints in CloudForms and its bootstrapping methodology to automatically register instances to a puppet master it is possible to effectively manage configurations across various cloud resource providers.
